Digital Optical Comparator Fast Accurate Dimensional Inspection VMD-3020

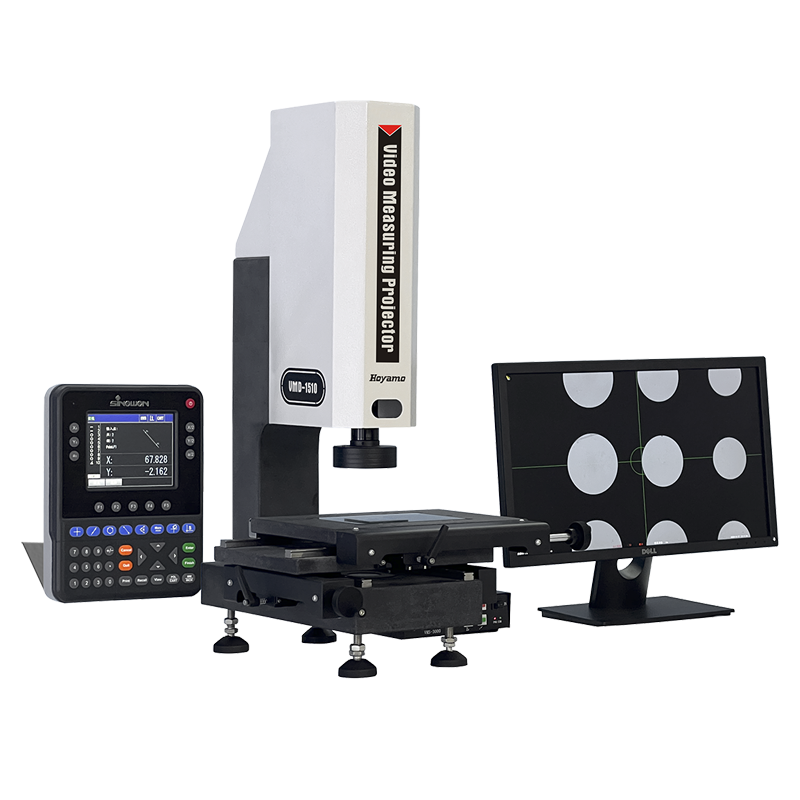

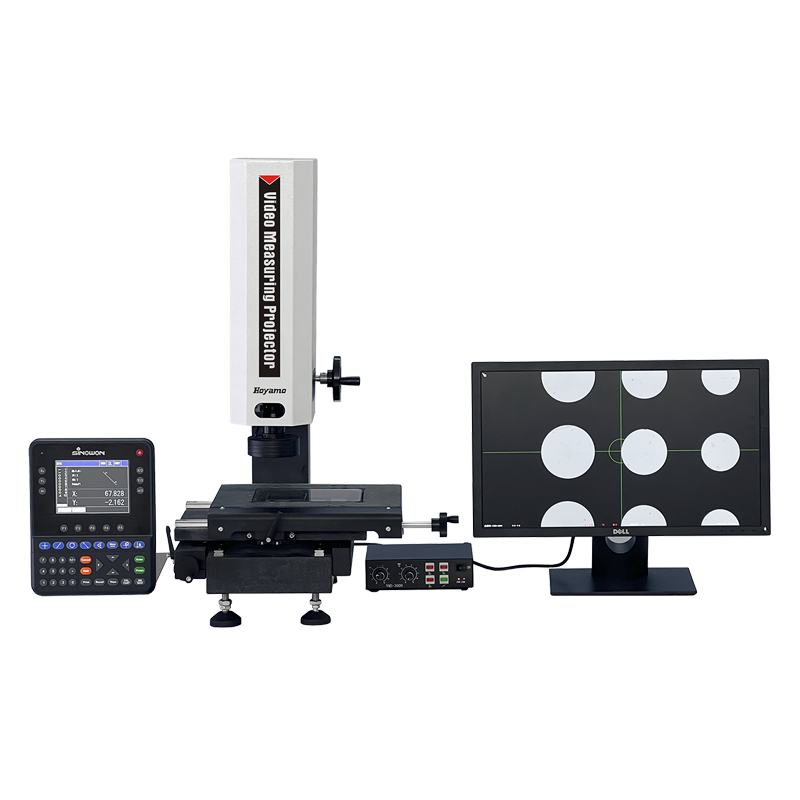

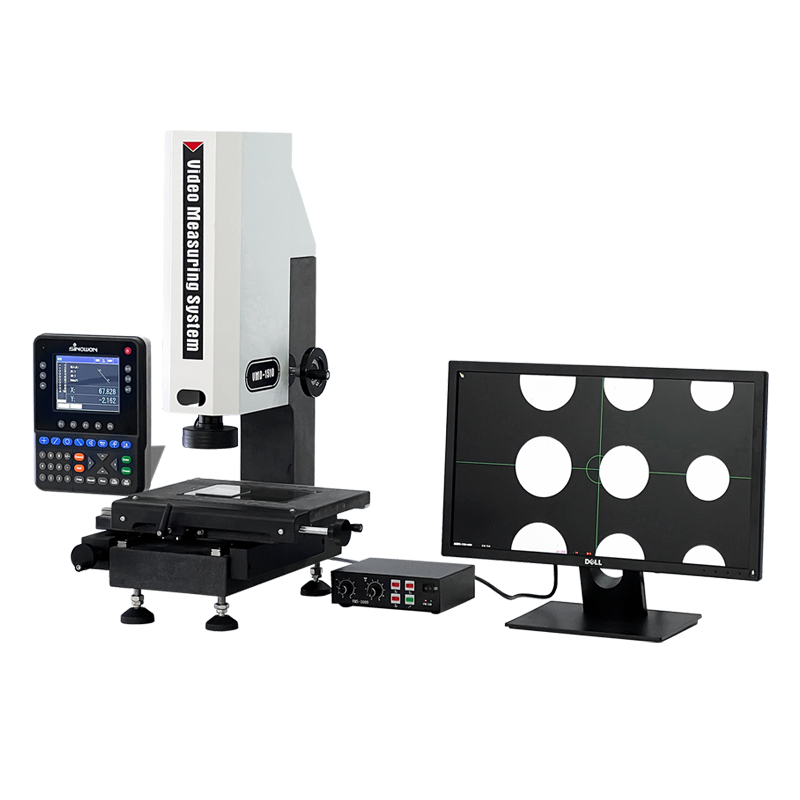

Video Measuring Projector VMD-3020

Product Characteristic:

l Adopts granite stone base and column to ensure the stability and precision of the machine;

l Adopts toothless polished rod and fast-moving locking device to ensure that the return error of the table is within 2um;

l Adopts high-precision instrument optical ruler and precision worktable to ensure E1 accuracy of the machine is within ≤3+L/200um;

l Adopts zoom lens and high-resolution color digital camera to ensure clear picture quality without distortion;

l Adopts LED cold surface light source and bottom LED parallel light source as projector illuminations;

l Adopts LED cold surface light source and bottom LED parallel light source as projector illuminations;

l Adopts to adjust the suitable color of Cross line to aim the measured points;

l Adopts high-quality color screen metrology multifunction digital readout DP400 as data process system.

Technical Specifications:

Models and Specifications:

The Measuring Space of VMD Series:

Multifunction Digital Readout of Video Measuring Projector DP400

Features:

Ø 5.6〃Color Screen and Sealed silicone touch button, with full information, friendly operation, long using life;

Ø Save 100 permanent image elements, can set and save current date;

Ø Multi-function Measurement: Point, line, circle, angle, distance, rectangular, screw thread, ellipse, slot, rounding, preset, construction, and so on;

Ø Obverse or Opposite direction counting function,1/2 value, midpoint, permission function, Call function, REC (record)function, and Cycle measurement;

Ø Section and linear compensation are available for 3-axis, highly ensure measurement accuracy;

Ø Can connect foot switch, printer, optical edge detection and other multiple auxiliary measurement tools;

Ø With polar and coordinate system, and can display millimeter and inch, and can shift easily;

Ø With independent password permission function, to prevent the possibility of data deviation by wrong operation, it can also change the original setting by password permission;

Ø Support multiple language: Chinese, English and other language.

Multifunction Digital Readout  Specification:
